Click on Settings to open a new window where you can manage the S360 box’s configurations.

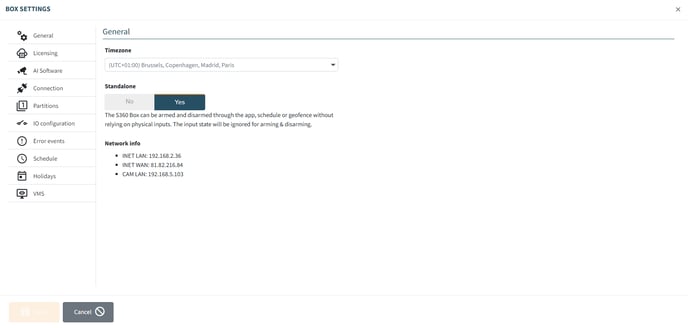

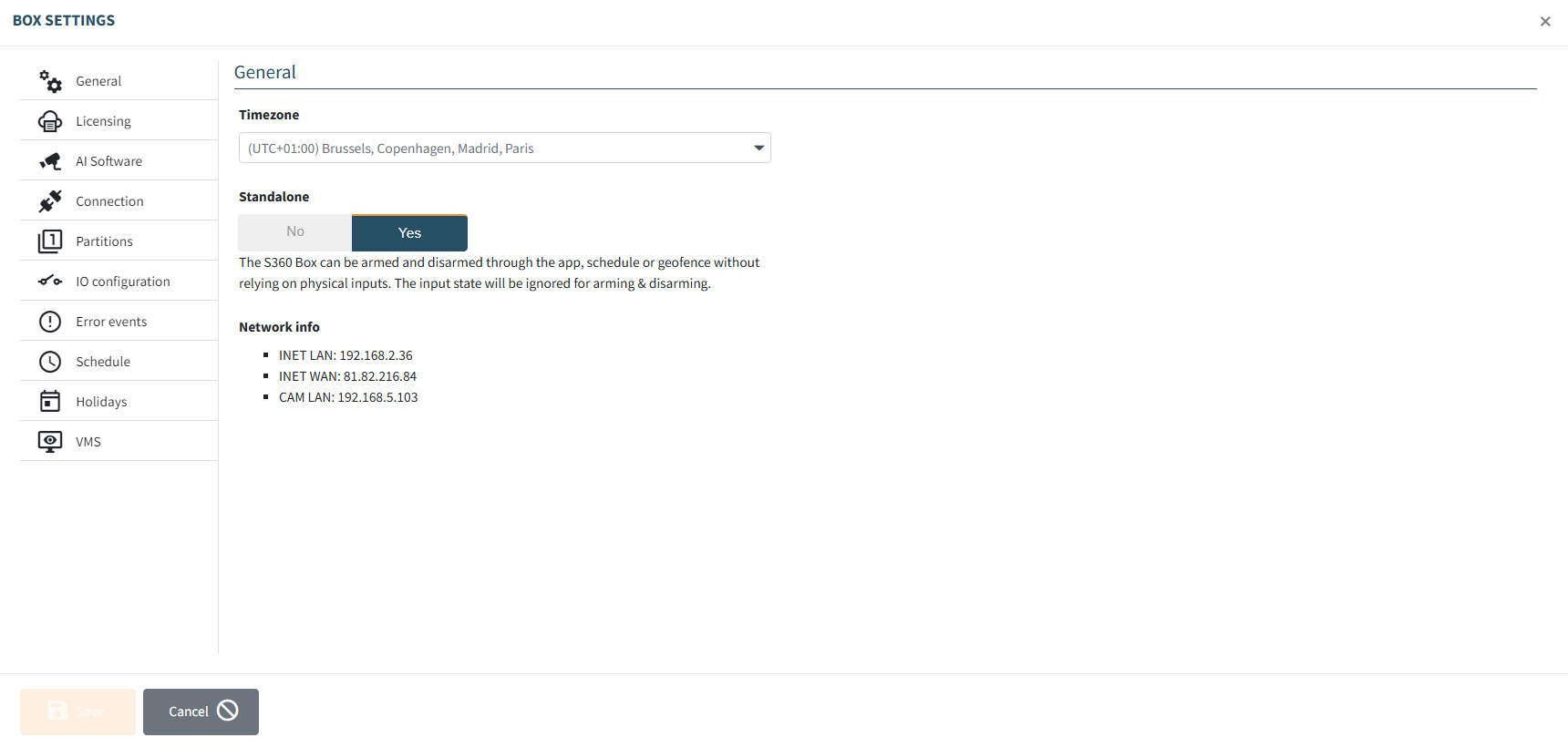

General settings
- When Standalone is enabled, the S360 box can be armed or disarmed using the mobile app or according to a time schedule.

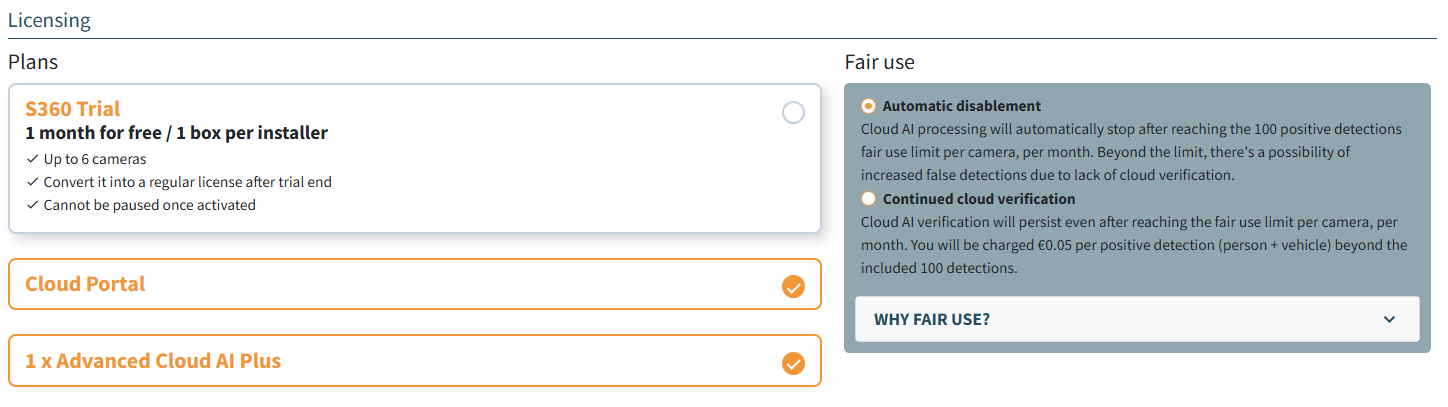

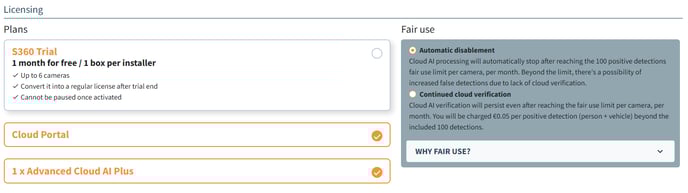

Licensing
- On the Licensing page, choose your preferred subscription model and set your fair use preference.
- Your subscription choice will affect AI accuracy, while the fair use preference influences your billing.
- Be sure to review all options carefully.
-

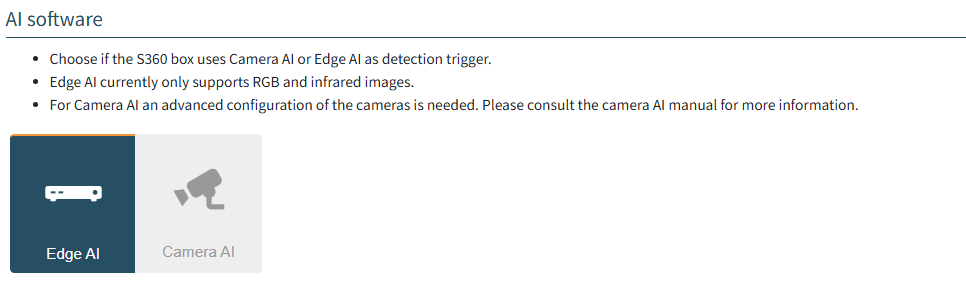

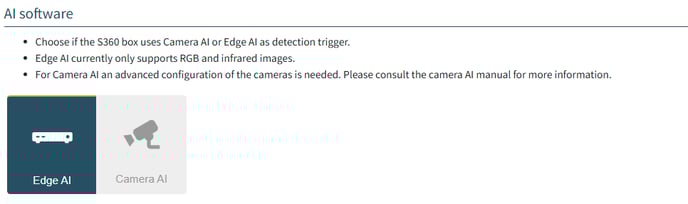

Detection trigger
-
- Select whether the Edge AI or Camera AI is used as the detection trigger.

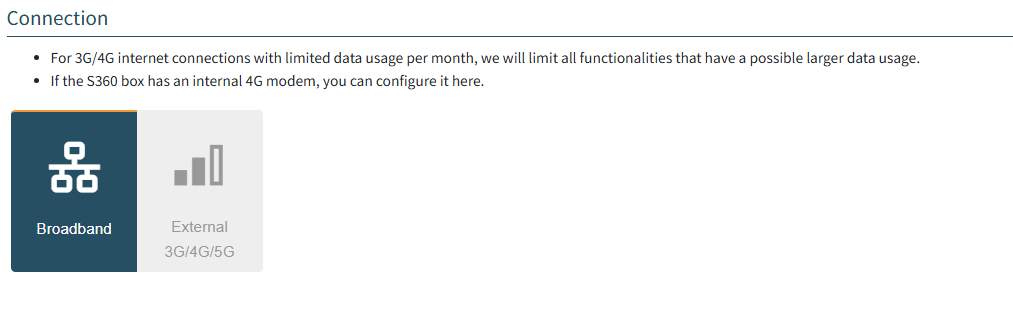

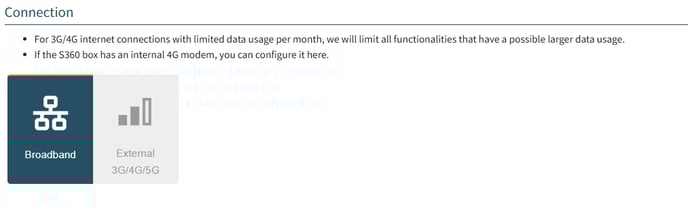

Connection type
- Choose the type of connection for the S360 box: broadband or external 3G/4G/5G.

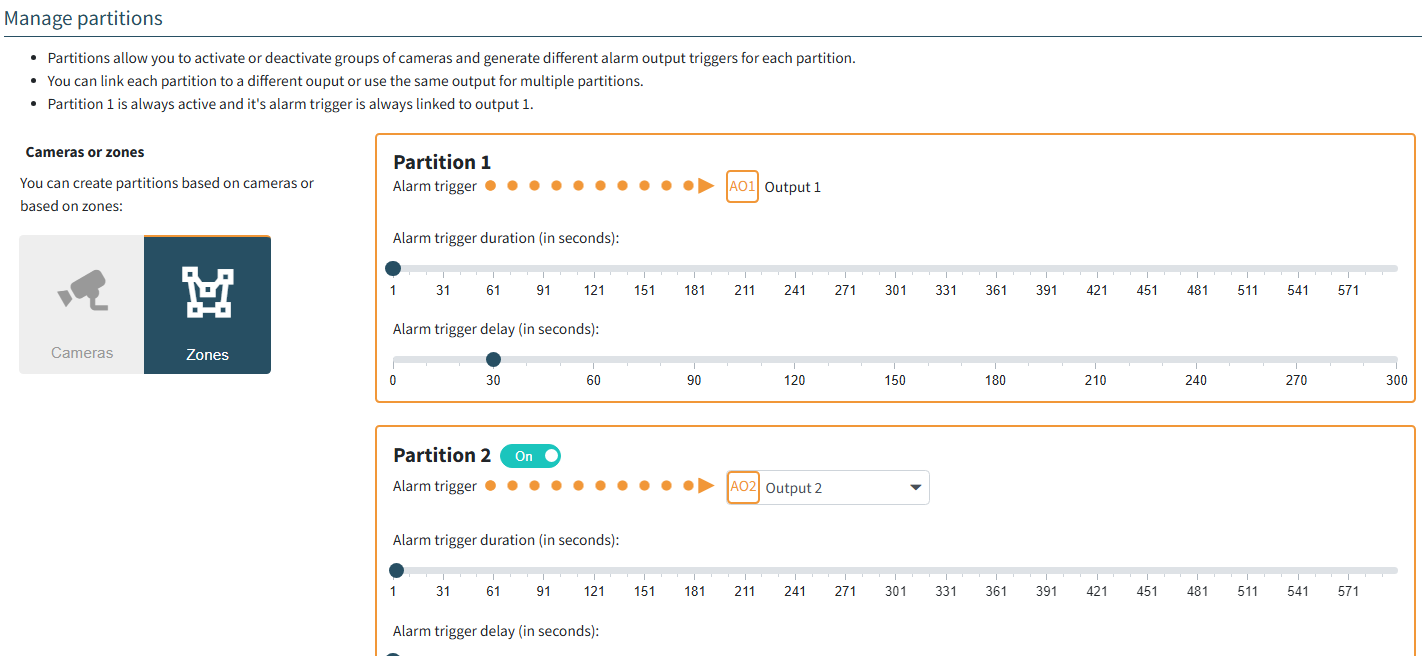

Partitions and alarm configuration
- Configure partitions, set alarm delays, and define durations.
- Route a partition to the desired output of the S360 box.
- You can assign cameras to different partitions and use zones for setting different partitions within a single camera view, as well as setting an alarm trigger duration.

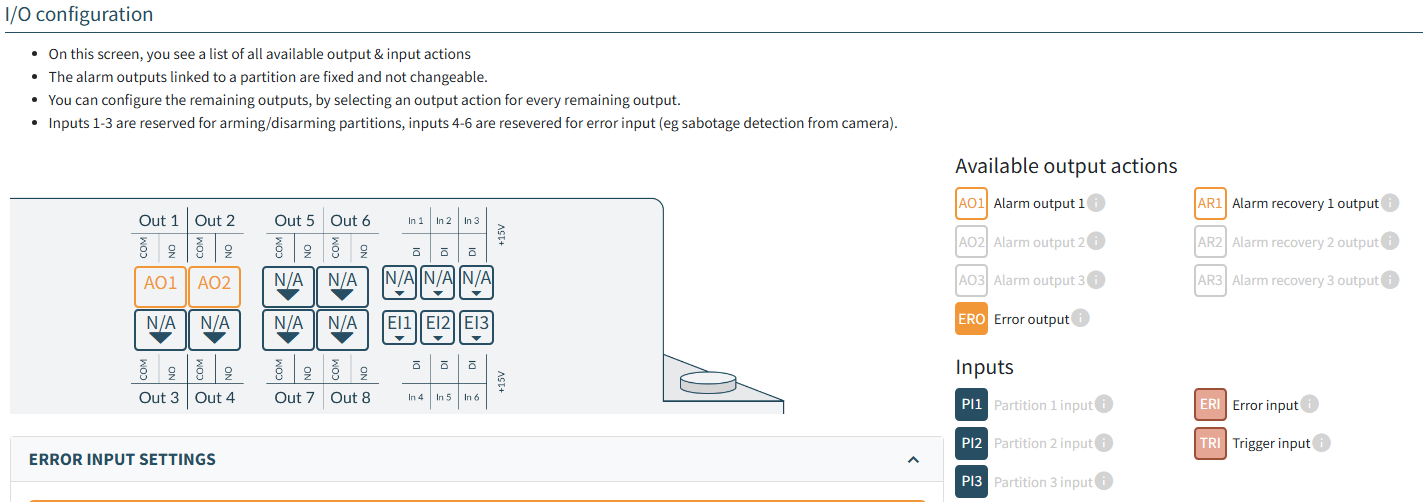

I/O Configuration
- The outputs for connecting to an alarm panel are fixed and depend on the number of partitions in use.
- Configure the remaining outputs by selecting an output action.
- Inputs 1, 2, and 3 are reserved for arming/disarming partitions.

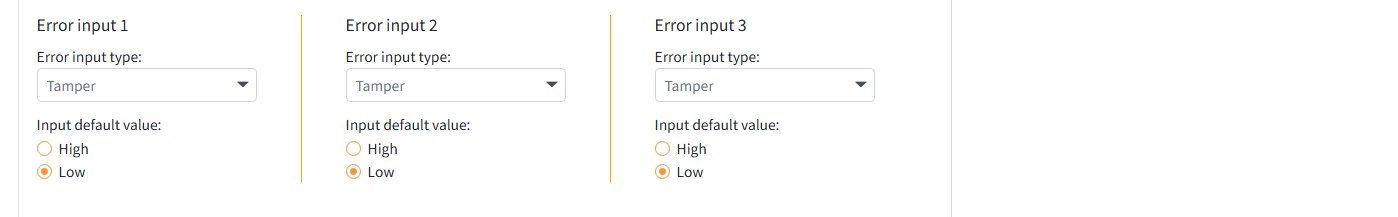

- Inputs 4, 5, and 6 are reserved for error inputs (e.g., sabotage detection from cameras).

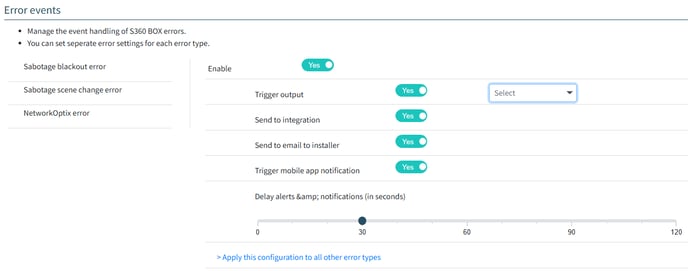

Error events
- Set different error event types, such as blackout and scene change errors.

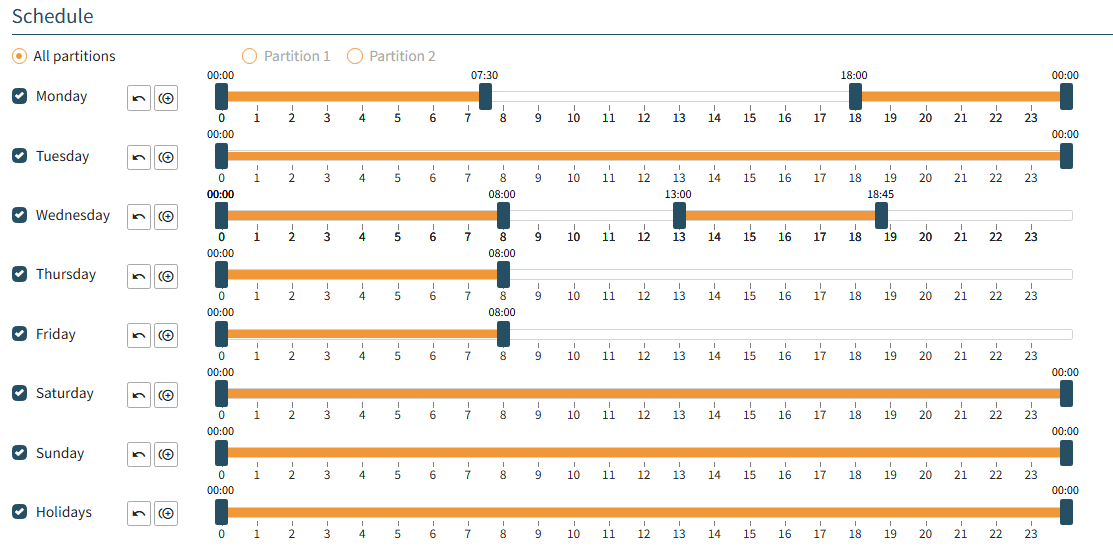

Scheduling
- Set a preferred schedule for the S360 box.
- You can copy schedules to other days and set different schedules for each partition.

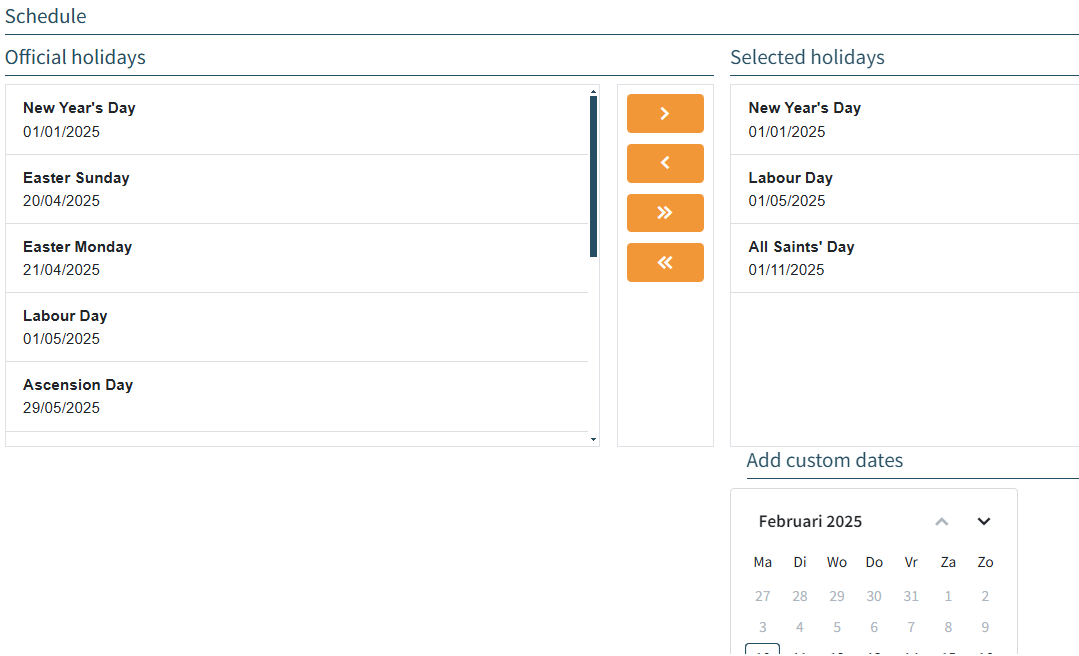

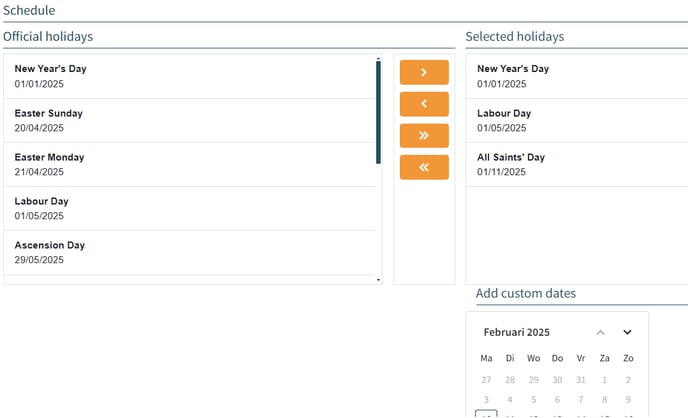

Holidays and custom dates
- Add official holidays to the schedule.
- If custom dates are required, they can be configured as well.

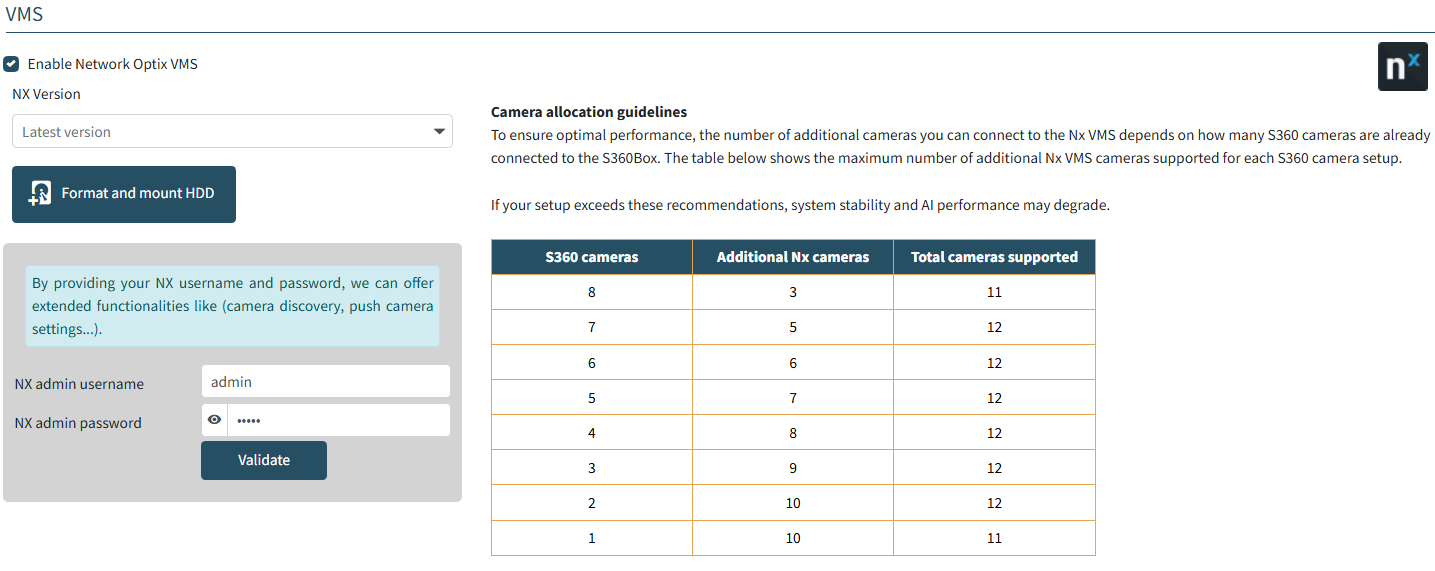

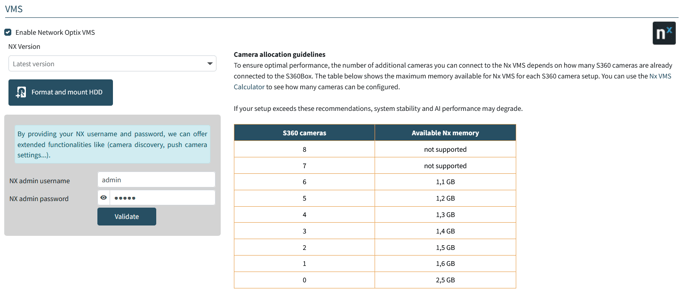

Network Optix (NX) VMS configuration
- If you wish to use Network Optix VMS on the S360 box, configure the connection here.
- For further instructions on NX configuration, see page 25.
- After configuring NX locally, ensure you add the system to NX Cloud to access it r
