      Mounting the S360 box

      The S360 Box offers versatile mounting options, including:
      ✔ Wall mounting
      ✔ Placement on a flat, stable surface

      Wall mounting instructions

      Follow these steps to securely mount the S360 Box on a wall:

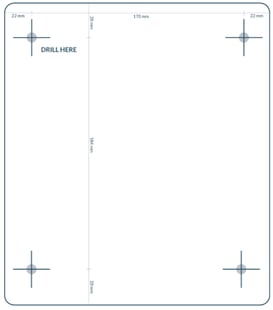

      1. Position the drilling hole sticker

        • Use the provided sticker to mark the drilling points.
        • Ensure it is placed on a flat, vertical surface for accurate alignment.

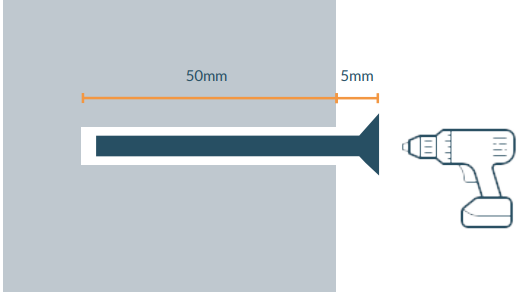

      2. Drill the mounting holes

        • Using the marked points on the sticker, drill two holes to a depth of 50mm.

      3. Insert screws and wall Plugs

        • Use the provided M4 screws and wall plugs for secure installation.
        • Ensure the screws protrude approximately 5mm from the surface.

      4. Mount the S360 box

        • Align the mounting slots on the S360 Box with the installed screws.
        • Slide the box securely into place.
