      Integrations & API

      Secury360 offers seamless integration with third-party software and video management systems, allowing enhanced functionality and automation. Below are the available integration options.



      SIA-DC-09 integration

      Through SIA-DC-09, Secury360 can send an event to a receiver.

      Configuration

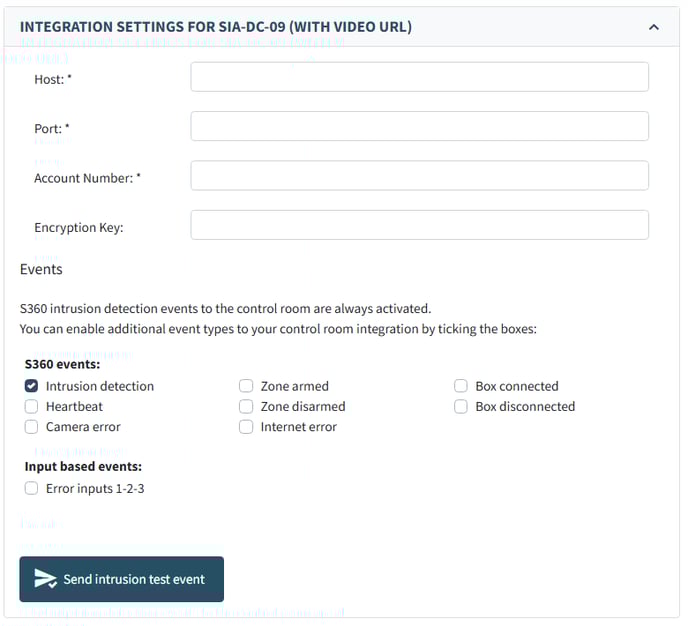

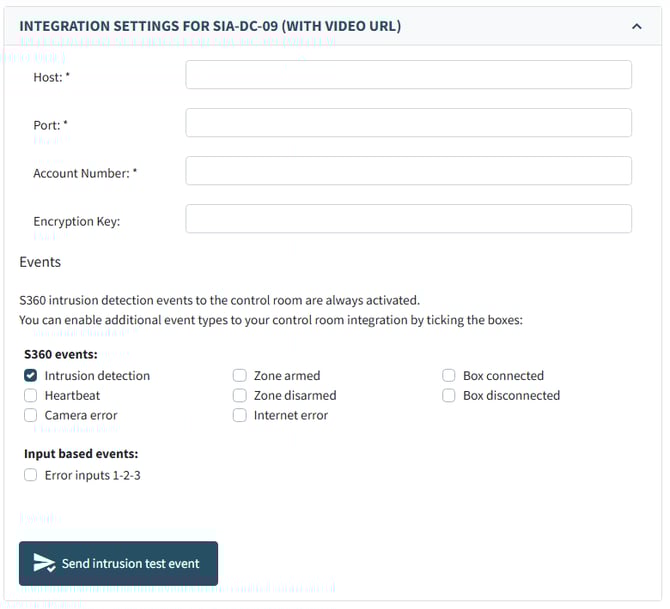

      To enable SIA-DC-09, fill in the following details:

      HOST IP IP address receiver
      PORT Port receiver
      ACCOUNT NUMBER PROM number receiver
      ENCRYPTION KEY (optional) In case encryption of the message is required

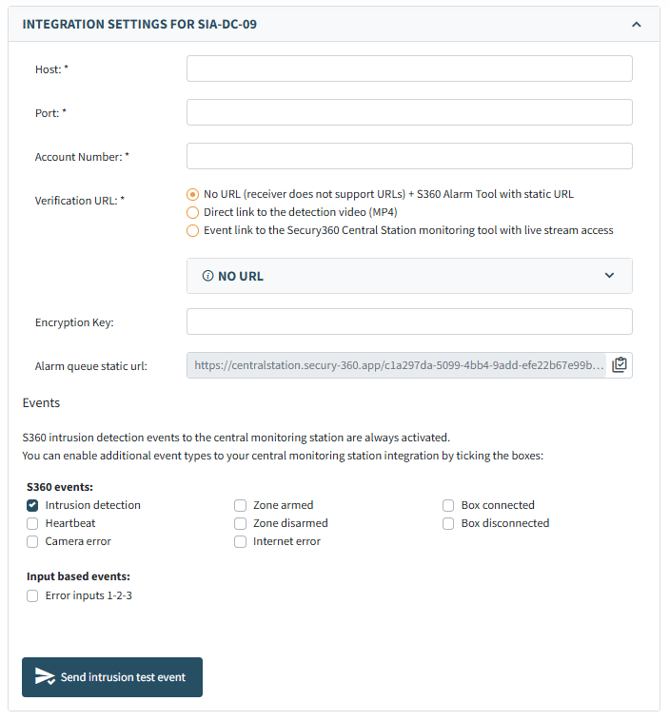

      EVENTS Enable additional event types to your central station integration by checking the boxes as shown in the figure below.

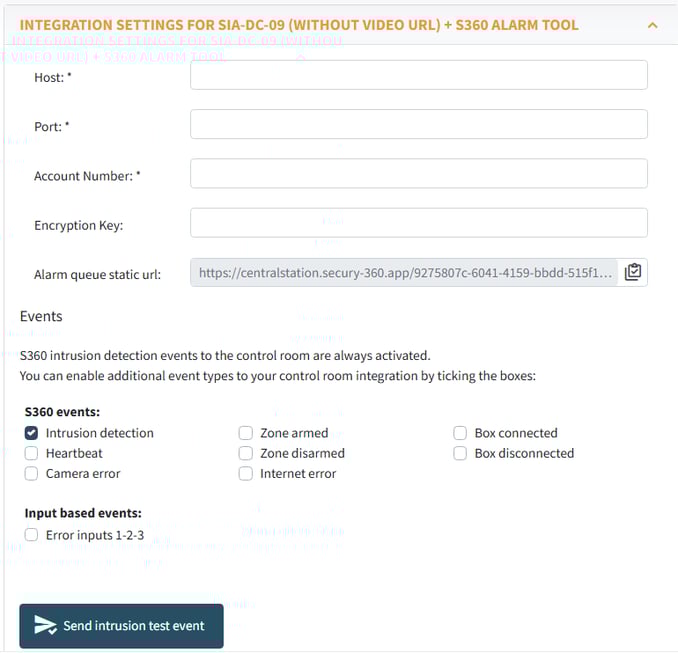

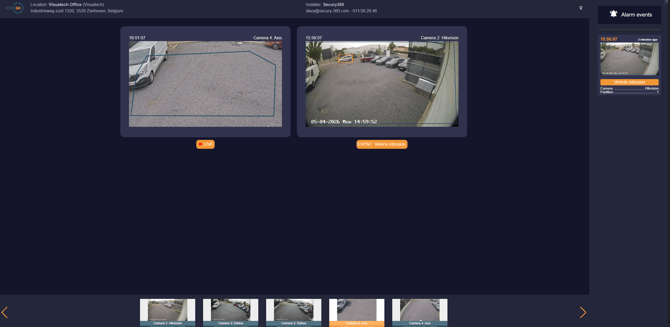

      You can choose to use SIA-DC-09 with or without video URLs and activate the S360 alarm tool.

      IMMIX integration

      Through IMMIX, an email is sent to the control room in case of detection. The email contains:

      • Alarm details (location, time, camera)
      • A link to the video clip of the detection

      Configuration

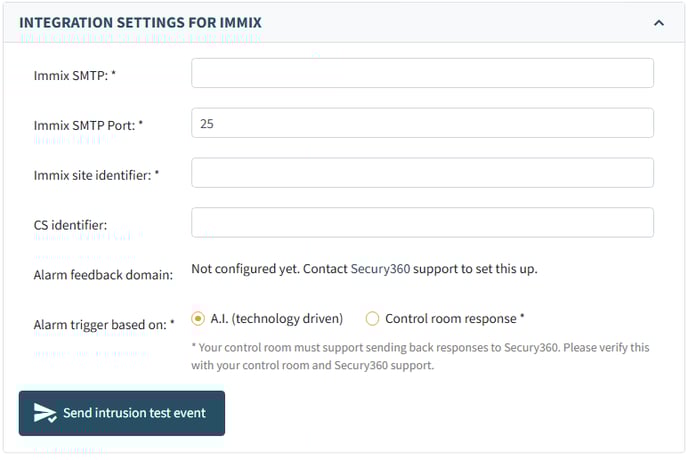

      Fill in the following information:

      • IP address of the control room
      • Port of the control room
      • Unique IMMIX ID

      If feedback from the control room is required, provide:

      • Username of the feedback address (username@domain)
      • Domain of the feedback address

      Additionally, you can configure whether the alarm trigger is based on AI detection or control room response.

      GENETEC integration

      Secury360 can send intrusion detection events directly into Genetec.

      Configuration

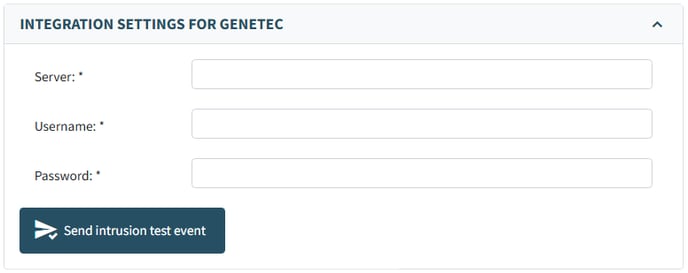

      Fill in the following information:

      • IP address of the Genetec server
      • Username of the API
      • Password of the API



      NETWORK OPTIX integration

      Secury360 supports Network Optix VMS, allowing video management and recording.

      Step 1: HDD installation

      Before enabling Network Optix, ensure an HDD is installed.

      Go to:

      Assembly of a 2.5" HDD in the S360 box V3

      Assembly of a 3.5" HDD in the S360 box V3

      Step 2: Configuration in the Cloud Portal

      1. Enable Network Optix VMS:
        • Go to Clients > S360 boxes > Actions > Settings.
        • Check the box to enable Network Optix.
        • Click on ‘Mount HDD’, then click ‘Save’.
        • The S360 box will reboot, and once it’s back online, the Network Optix software will be running.

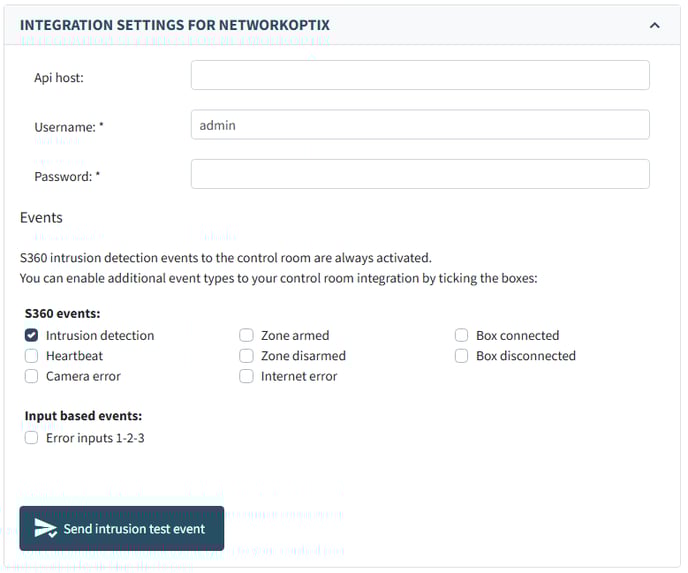

      2. Enter your Network Optix username and password for additional functionalities.

      A local connection is required for the first setup.

      Step 3: Download & configure Network Optix

      1. Download the Network Optix Client software from https://nxvms.com/download.
      2. Open the Network Optix Client, where the S360 box will appear as a new server.
      3. Configure settings within the Network Optix client.

      To start recording video, a Network Optix license key is required.

      Step 4: Enabling recording & event rules

      • To start recording video, a Network Optix license key is required.

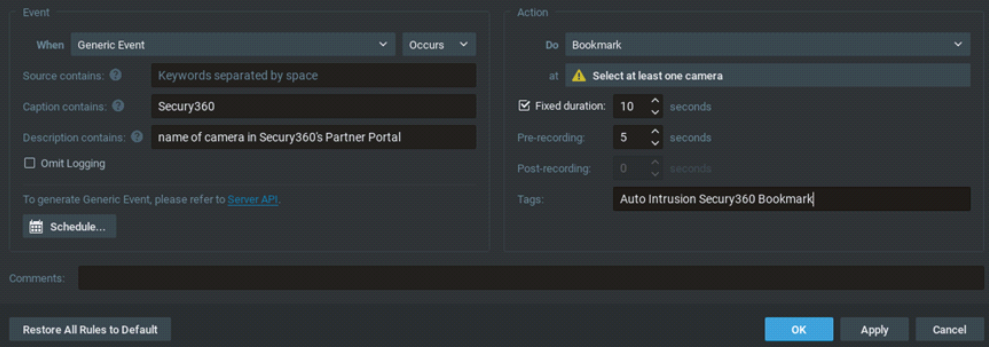

      • Add an Event Rule in Network Optix to register detections as bookmarks:
        1. Right-click on ‘Notifications’ and select ‘Event Rules…’.
        2. Click on ‘+ Add’.
        3. Configure the rule according to your needs.

      Step 5: Enable digest authentication

      To allow events from Secury360 into Network Optix:

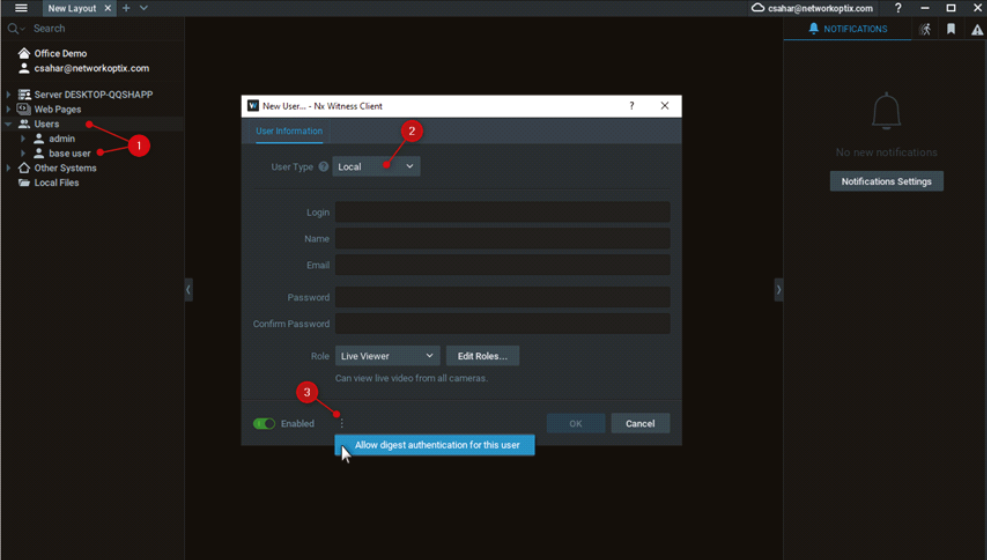

      1. Right-click on an existing Local user and select User settings (or create a new user).
      2. Click on the three vertical dots and enable ‘Allow digest authentication for this user’.
      3. Click OK to save the settings.
